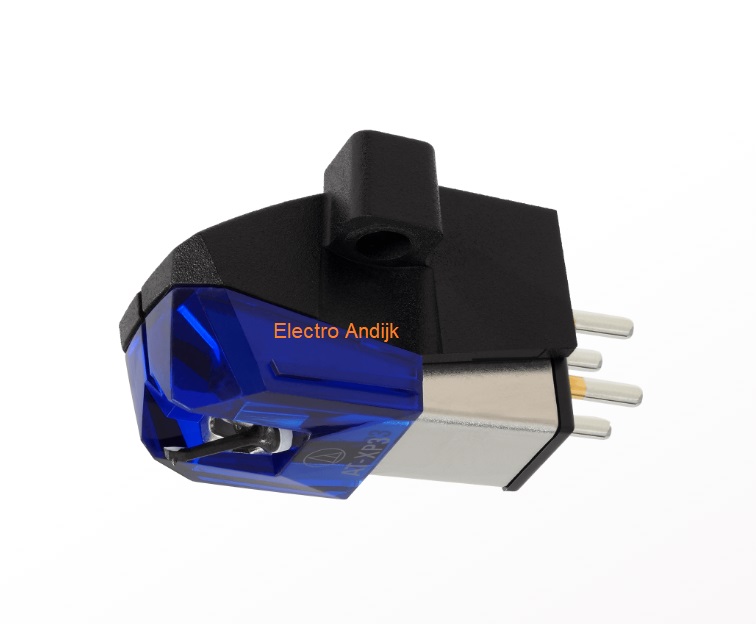

Audio Technica AT-XP3 DJ element met naald
| Frequentierespons | 20 to 18,000 Hz |
|---|---|
| Kanaalscheiding | 20 dB (1 kHz) |
| Verticale trackinghoek | 20 degrees |
| Vertical Tracking Force | 2.0 to 4.0 g (standard 3g) |
| Naaldconstructie | Bonded Round Shank |
| Aanbevolen ladingsimpedantie | 47,000 Ω |
| Spoelimpedantie | 6,700 ohms (1 kHz) |
| Spoelinductantie | 550 mH (1 kHz) |
| Uitgangsspanning | 5.5 mV (at 1 kHz, 5 cm/sec) |
| Balans uitgangskanaal | 2.0 dB (1 kHz) |
| Naaldvorm | Conical |
| Cantilever | Carbon reinforced ABS |
| Statische compliantie | 20 x 10 – 6 cm / dyne |
| Dynamische compliantie | 6.0 x 10 – 6 cm / dyne (100 Hz) |
| Bevestiging | Half-inch |
| Elementgewicht | 6.2g |
| Afmetingen | 17.2 x 17.8 x 28.3 ( H x W x D mm) |
| Meegeleverde accessoires | Two 11 mm installation screws; Two 8 mm installation screws; Two washers Two Nut Non-magnetic screwdriver |
| Model | AT-XP3 |
| Aanbevolen ladingscapaciteit | 100-200 pF |
| Vervangingsnaald | ATN-XP3 |
| Naaldgrootte | 0.6 mil |
Indien losse naald nodig :
